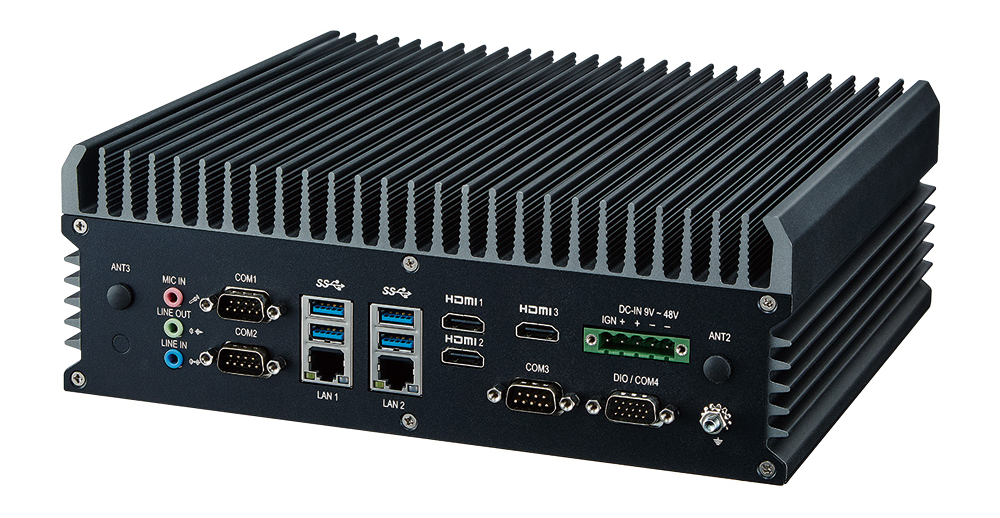

SINTRONES ABOX-5000G
Intel 6th/7th-Gen Quad Core i7/i5/i3 CPU with 6 GbE/ 3 COM/ 7 HDMI/ 4 USB 3.0/ AMD Radeon™ E9260 GPU/ 9-48V/ In-Vehicle Fanless Computer
- Intel 6th/7th-Gen Quad Core i7 CPU
- AMD Embedded Radeon™ E9260 GPU
- 8 x GPI, 4 x GPO and 3 x RS-232/422/485
- Dual Hot Swappable SATA Storage, RAID 0,1,5
- 9-48VDC Input and Operating Temp.: -40 ~ 70°C
- 6 x GbE LAN (Optional for 4 x PoE)
Intel 6th/7th-Gen Quad Core i7/i5/i3 CPU with 6 GbE/ 3 COM/ 7 HDMI/ 4 USB 3.0/ AMD Radeon™ E9260 GPU/ 9-48V/ In-Vehicle Fanless Computer
Specifications
- System
- CPU
Intel Xeon E3-1268L v5 (8M, cache 2.4~3.4GHz)*
Intel Gen6 Core i7-6700TE (8M Cache 2.4GHz up to 3.4GHz)
Intel Gen6 Core i5-6500TE (6M Cache 2.3GHz up to 3.3GHz)
Intel Gen6 Core i3-6100TE (4M Cache 2.7GHz)
*Use only with Intel C236
Memory
2 x DDR4 2133 MHz SO-DIMM up to 32GB
Chipset
Intel® C236 / Q170 Platform Controller Hub
LAN Chipset
5 x Intel i210-AT and 1 x i219LM (Support iAMT) Gb/s
Ethernet Controllers Onboard Support PXE and WOL
Watchdog
1 ~ 255 Level Reset
I/O
- Serial Port
3 x RS-232/422/485 (Auto Direction Control)
USB Port
4 x USB 3.0 Ports
LAN
6 x RJ45 Ports for GbE (Optional for 4 x POE total Max. 100w)
Video Port
7 x HDMI Ports
DIO Port
8 x GPI and 4 x GPO
Audio
1 x Line-out, 1 x Line-in and 1 x Mic-in
Expansion Bus
3 x Full Mini-PCIe Slots and
1 x M.2 A-E Key 2230 Slot (2 x SIM Card Sockets for 3G/LTE)
Graphics
- Graphics
AMD Radeon™ E9260 GPU
Support for OpenGL 4.5. and OpenCL™ 2.0.
Support for Mantle and AMD LiquidVR™
Support for DirectX® 12 (Feature Level 12_0) features
Resolution
Max Resolution (HDMI 2.0b) : 5120x2880@60Hz
Storage
- Type
2 x 2.5" Drive Bay for SATA Type HDD/SSD, RAID 0,1,5
1 x mSATA
Power Requirement
- Power Input
9V -48V DC Power Input
Power Protection
Automatics Recovery Short Circuit Protection
Power Management
Vehicle Power Ignition for Variety Vehicle
Power Off Control
Power off Delay Time Setting by Software and BIOS
Backup Battery
Internal Battery Kit for 10 Mins Operating (Optional)
Patent No. : M447854 - Build-in Battery
Environmental
- Operating Temp.
-40°C ~ 70°C
Storage Temp.
-40°C ~ 80°C
Relative Humidity
10% RH – 90% RH (non-condensing)
Certifications
CE, FCC Class A, E13
Patent No. (Taiwan) M447854, M448011
Mechanical
- Construction
Aluminum
Mounting
Wall-mount
Weight
3860g (Barebone)
Dimensions (LxWxH)
260(L) x 226(W) x 89(H) mm
Ordering Information
- ABOX-5000G-i7S Optional for i5S/i3S/C1S
- Intel 6th/7th-Gen Quad Core Xeon/i7/i5/i3 CPU with 6 GbE/ 3 COM/ 7 HDMI/ 4 USB 3.0/ AMD Radeon™ E9260 GPU/ 9-48V/ In-Vehicle Fanless Computer
